CNCTOPBAOS 2.2KW 220V ISO20 ATC Automatic Tool Change Water Cooled Spindle Motor 24000rpm 400Hz 80mm with 2.2KW VFD Inverter Drive CNC Kit for CNC Router Cutting Milling Engraving Machine
$1,710.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by labena.hr
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 218549205 | Release Date | 2026/05/03 | List Price | $684.00 | Model Number | 218549205 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

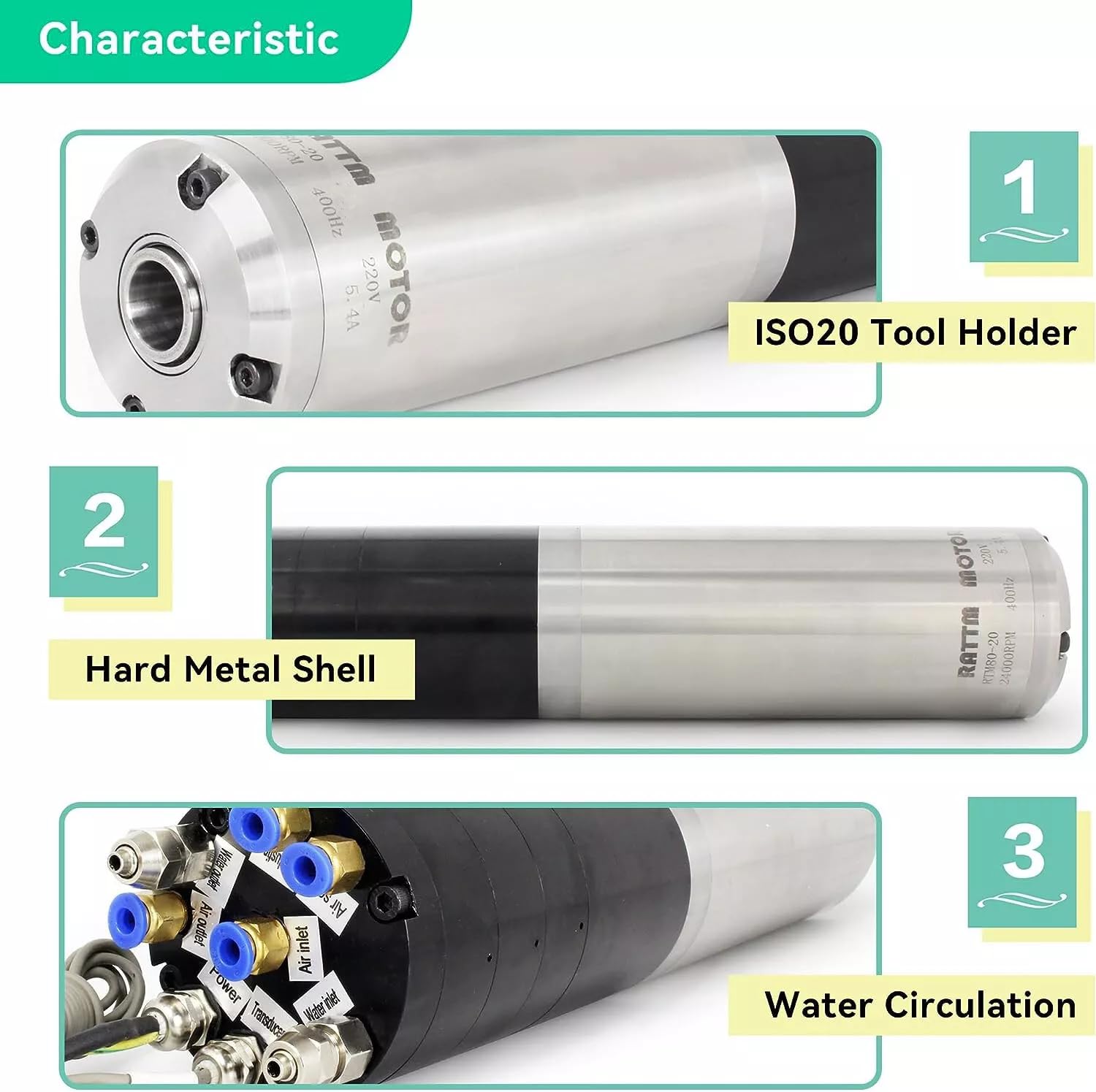

- Model: RTM80-20-24Z/2.2; This spindle is built-in type spindle motor,built-in three asynchronous motors,by the inverter control; The tool clamping methods:this spindle built-in automatic tool change device,tool holder form is ISO20
- Parametes: Voltage: 220V; Speed: 3000-24000rpm; Frequency: 400Hz; Motor pole: 2 Poles; Rated power: 1.8KW (S1); Peak power: 2.2KW (S6); Rated torque:59N.cm; Peak torque:84N.cm; Current: 6.4A
- Bearings: The bearing of spindle use grease lubricated angular to contact bearings; Can be used to work on wood, castings, aluminum, glass, etc and other processing;The spindle use forced cooling mode to cooling motor,front and rear bearings; The spindle built-in PTC 140 temperature sensor
- VFD: 2.2KW Fuling VFD Inverter; Input Voltage: 220V+/-15%; Output Voltage: 220V; Input: Single phase or Three phase; Output: Three phase; Outpute Frequency: 0-1000Hz; Input Frequency: 47-63Hz; Current:10A; Wirings: R S T any 2 pins connect to 220V AC single phase power supply
- The spindle built two 0-24V, PNP Sensors: Response tool clamp signal, when the tool holder is hang, black sensor output signal; Response tool open signal, when the tool jaws open, black sensor output signal
| Speed | 24000 RPM |
|---|---|
| Voltage | 220 Volts (AC) |
| Brand Name | CNCTOPBAOS |
| Horsepower | 2.2 Kilowatts |
| Part Number | HD22C220 |
| Manufacturer | Changzhou Rattm Motor Co.,Ltd |
| Included Components | 1x ATC spindle,1x VFD |
