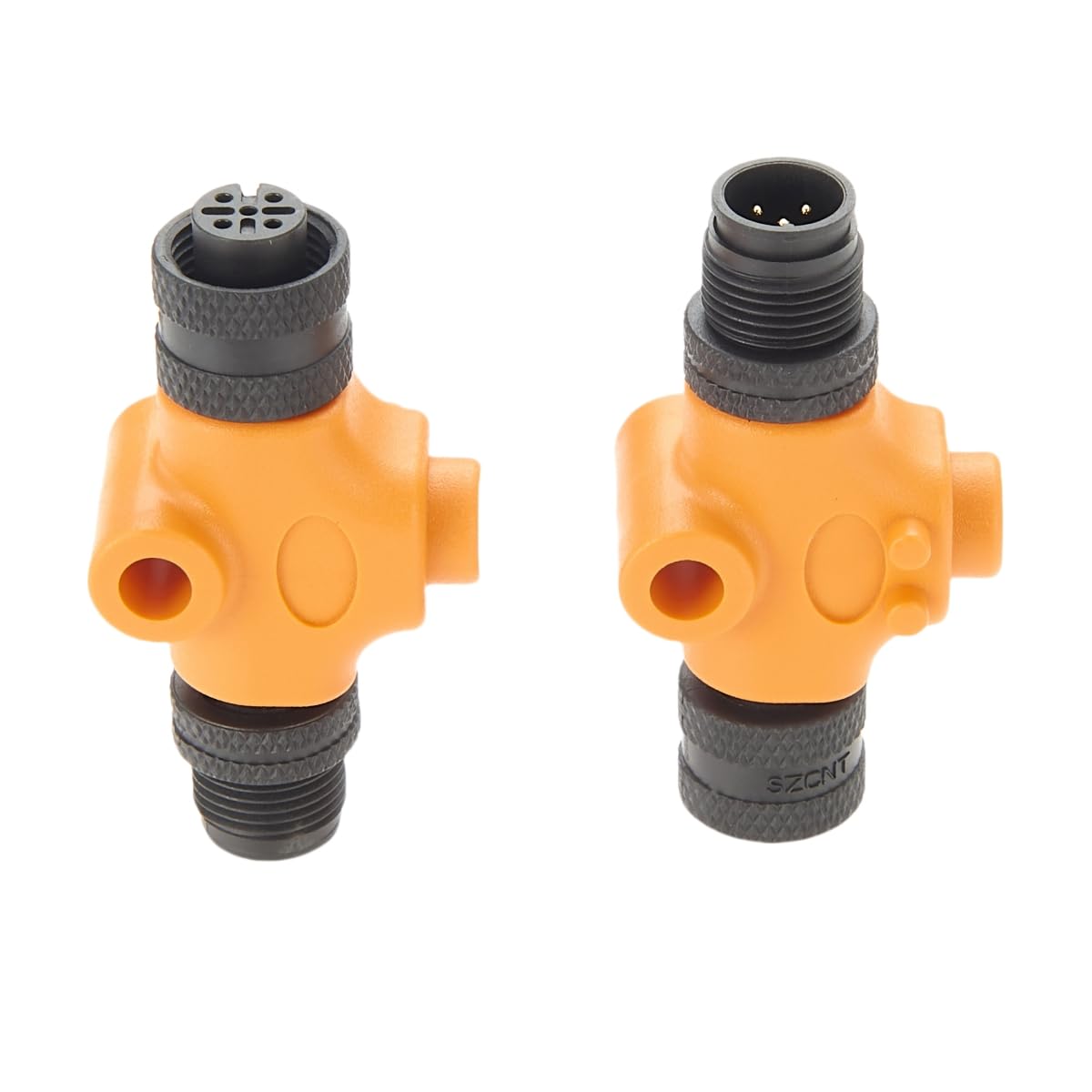

NMEA2000 Micro-C Network Power Isolator IP67 Waterproof N2K Micro-Change M12 Male to Female Connector for Boat Marine GPS Compatible with 010-11580-00

Technical:Connector A: M12 5Pin Male AdapterConnector B: M12 5Pin Female AdapterWaterproof level: IP67Operating temperature: -40°C to 85°CMaterial marine-grade, UV-resistant material

• 【Introduction】NMEA 2000 Power Isolator is an important device for ship electronic systems. It is a device specifically used for NMEA 2000 network power management, which usually prevents problems such as circulating current and voltage conflicts between different power sources.
• 【High Quality】M12 Boat Marine Connector Made of PVC material, oil resistant,high temperature resistant,seawater-resistant,fire retardant,ensuring durability, corrosion resistance, and anti-rust performance.
• 【Waterproof & Reliable】Micro-Change Micro-C M12 5Pin,with stable conductivity and IP67 waterproof, ensuring safer and more durable use in harsh marine environments.
• 【Use 1】Note, when you want to use it as a power isolator, this product is only used for NMEA2000 power isolation!!! The WaterProof N2K Power Isolator Contains 5 pins, including one ground wire, 2 data wires, and 2 positive and negative power wires. When you want to use it as a power isolator, the 2 power wires do not need to be connected.
• 【Use 2】When you want to use it as an M12 male-to-female adapter, all 5 pins must be connected. At this time, it can be used for NMEA2000, CAN BUS, CANOpen, Devicenet, Sensor, Actuator wire connection.
• 【Application】M12 Female To Female Adapter for NMEA 2000 network with multiple power supplies,for Marine electronic equipment, ship navigation, GPS, AIS, radar, fish finder, wind speed sensor, autopilot.
