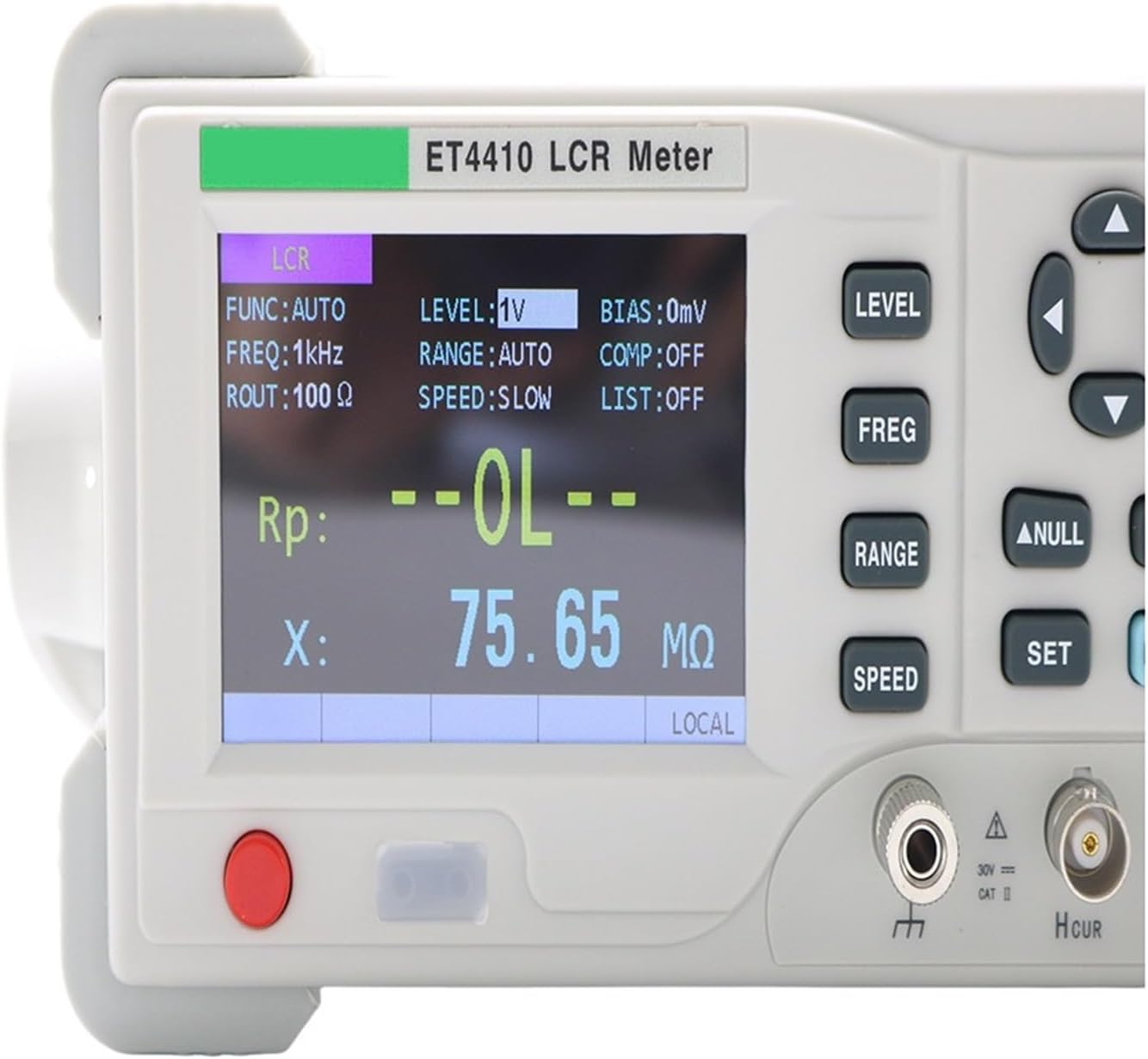

Tester Desktop Electric Bridge ET4401/2/10 Resistance Impedance Capacitance Inductance Measure Instrument Digital LCR Meter(ET4401)

Main technical indicators:ModelET4401ET4402ET4410Testing frequency10 Points(100,120,200,400,800,1K,2K,4K,8K,10K)12 Points(100,120,200,400,800,1K,2K,4K,8K,10K,15K,20K)16 Points(100,120,200,400,800,1K,2K,4K,8K,10K,15K,20K,40K,50K,80K,100K)Display screen3.5" TFT LCD screenNumber of display digitsPrincipal parameter: 5 digitSecondary parameter: 5 digitMeasured parameter:Principal parameter: L/C/R/ZSecondary parameter: X/D/Q//ESRMeasurement rangeL:0.001µH-9999H,C:0.001pF-99.999mF,R:0.0001-99.99MBasic accuracy0.1%Measuring display speed2 time/s (slow), 4 times/s (medium), 8 time/s (fast)Internal bias0-1500mV adjustable, at a step of 1mV.Testing levelSix fixed level(0.1V,0.3V,0.6V,1V,1.5V,2V)Signal source output impedance30,100Calibration functionOpen circuit calibration, short circuit calibrationScreening functionThe limit range of screening can be set to -50%-+50%, and the fixed points are 1%, 5%, 10% and 20%.Comparator5 groups sorting,3 groups of qualified setting, one group of unqualified setting, one group of auxiliary settingInterfacesstandard: RS232, USB Device,Handler ;OthersSupport dc resistance (DCR), electrolytic capacitor measurement model,Adjustment of backlight brightness, Chinese and English are optionalGeneral technical specifications:<;10W Display: 3.5" TFT LCD, resolution 480*320Interfaces: standard:RS232(or 485), USB Device,Handler ;Service environment: 0°C-40°CSizes: 265mm*105mm*305mm (L*W*H)Weight: 2.1kg

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.
• External Interfaces: One is equipped with external interfaces for connection and data transfer to other equipment or computers for more extensive data processing and analysis.
